Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine
HomeHome > Products > EPS Machine > Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine
Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

Overview Package Size 200.00cm * 200.00cm * 200.00cm Package Gross Weight 1000.000kg Waste PP/PE/LDPE/HDPE/BOPP Film & W
Overview
Basic Info.
Model NO. RSS series
Screw Single-Screw
Inverter Inverter
Electromagnetic Heater Electromagnetic Heater
Automation Automatic
Computerized Computerized
Customized Customized
Certification CE, ISO9001:2008
Condition New
Line dimension 12x8x4m
Temperature meter Omron
Labor request 1-2 People
Granules size 3mm
Supply voltage 3*380V or Customized
Model RSS
Cutting type Dice-face cutting
Hydraulic Screen Changer Double position board model
Capacity 150~1000kg/h or customer
Screw diameter 85~200mm
Screw material 38CrMoAlA
Water supplying 12.5 Cubic meter/h
Inverter brand ABB
Transport Package Standard Export Packing
Specification According to model
Trademark MOOGE
Origin Jiangsu, China
HS Code 84778000
Production Capacity 20set/Year Granulator
Packaging & Delivery
Package Size 200.00cm * 200.00cm * 200.00cm Package Gross Weight 1000.000kg
Product Description
Waste PP/PE/LDPE/HDPE/BOPP Film & Woven Bag Plastic Granulator/Pelletizing Machine /Granulating Line / Recycling Line

Product Description

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

1.Waste Plastic film / bags after washing recycling ,we can use this machine to making plastic granules.New granules After Blow molding or Injection ,it can be used to making new plastic product.Such as plastic film,plastic bags,plastic bottle,plastic pallet,plastic box,plastic barrel etc.2.this machine suit for PP/PE/LDPE/HDPE/BOPP Film & Woven Bag and other plastic.3.We supply single stage or double stage (Mother and baby type).

Product Parameters

We have different capacity from 100kg/h to 1000 kg/h of this RSS-Series waste plastic granulator machine for your choice.We can also design the layout in "L" or "U" type according to your special requirements.

ModelScrew diameter:mmScrew L/DMain Motor Power:KWCapacity:KG/H
RSS-SJ 858525~35:155150-200
RSS-SJ 10010025~35:175250-300
RSS-SJ 13012025~35:190-110400-500
RSS-SJ 15015025~35:1110-132500-600
RSS-SJ 16016025~35:1132-160600-800
RSS-SJ 18018025~35:1160-200800-1000
RSS-SJ 20020025~35:1185-2251000


PE PP Film/bags flakes extruder layout:1.Conveyor belt → 2.Semi automatic metal detector →3.Compactor force feeder→4.The first stage extruder→5.Without Wire mesh filter hydraulic changer(it can increase 10% capacity than normal hydraulic chnager,but the total cost will be increased,we usually use normal hydraulic changer)→6.the second stage extruder →7.normal hydraulic changer →8.Die face cutting system→9.Water cooling tank→10.Centrifugal dewatering machine→11.Vibrator screen machine→12.Air conveyor & Storage silo

Working Flow

S/NItem NameQty

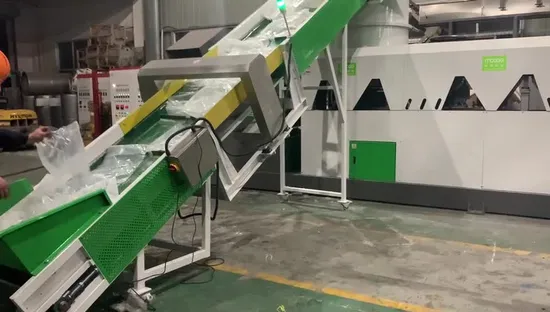

1Feeding Conveyor Belt with metal detector for PP PE film1 SET
2Agglomeration Compactor Feeder for film1 SET
1-1Screw Loader for HDPE flakes1 SET
2-1Dosing feeder for HDPE flakes1 SET
3SJ150/30 Single Screw Extruder (First Stage)1 SET
4Hydraulic Screen Changer1 SET
5Material Separated Die Head1 SET
6SJ150/12 Single Screw Extruder (Second Stage)1 SET
7Hydraulic Screen Changer1 SET
8Die face cutting system1 SET
9Water cooling tank1 SET
10Dewatering machine1 SET
11Vibration screen1 SET
12Air Conveying System1 SET
13Silo1 SET
14Electric Control Cabinet1 SET
15Free Spare Parts1 SET

Detailed Photos

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

Waste PP/PE/LDPE/HDPE/BOPP/PA/PVC/ABS/PS/PC/EPE/EPS/PET Film Flake Jumbo Woven Bag Plastic Granulator Line Pelletizing Plant Granulating Recycling Machine

After Sales Service

• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.

• In-sales: we supply the details layout, installation instruction, and technician support for the clients.• After sales: we arrange engineer to install the machine and train the workers for our client.• We have 24 hours service line to solve the after sales problem.• We have free spare parts with the machine.• We supply long term spare parts for every customer.• We always update the new technology to every customer.

FAQ

• What material do you want to recycling? PE film? PP woven bag? PE/PP bottle? or others?• What capacity(kg/h) do you want?• Your material is dirty or clean?• Other special requirements about the plastic granulator line you want.
