EPS Continuous Pre

EPS Continuous Pre

Main Features: 1,All process including filling, expanding, sieving, delumping and conveying to silos are done automatica
Basic Info.
Model NO. PSY70-120
Warranty 1year
Condition New
Plastic Type EPS
Transport Package Standard Export Package
Trademark VST
Origin Zhejiang, China (Mainland)
Production Capacity 20 Unit / Month
Product Description

Main Features:

1,All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2,With primary and secondary expansion device to get density of 8-30g/l
3,Fist filling is controlled by frequency converter
4,With power-off protection device
5,With Japan steam presure reducing valve
TECHNICAL DATA
Item PSY-70PSY-90 PSY-120
Expansion Chamber Diameter
Volume
Useable volume
Φ 700mm
0.6 m³
0.4m³
Φ 900mm
1.2 m³
0.8m³
Φ 1200mm
2.2m³
1.5m³
Steam Entry
Consumption
Pressure
DN20
80-100kg/cycle
0.6-0.8MPa
DN40
100-150kg/cycle
0.6-0.8MPa
DN40
150-200kg/cycle
0.6-0.8MPa
Compressed Air Entry
Pressure
DN15
0.6-0.8MPa
DN20
0.6-0.8MPa
DN20
0.6-0.8MPa
Drainage Condensate Φ 20mm Φ 20mm Φ 20mm
Throughout 15g/l
20g/l
25g/l
30g/l
100g/l
120g/l
150g/l
200g/l
150g/l
200g/l
250g/l
300g/l
250g/l
300g/l
410g/l
500g/l
Material Conveying Line Φ 150mm Φ 150mm Φ 150mm
Connected Load 8.93Kw 9.73Kw 13.33Kw
Density First expansion
Second expansion
12-30g/l
8-11g/l
12-30g/l
8-11g/l
14-30g/l
8-13g/l
Overall Dimension (L*W*H) 4700*2660*2600(mm) 4700*2930*3200(mm) 4905*4655*3250(mm)
Weight 1300kg 1500kg 1800kg
Room Height Required 3000mm 3000mm 3000mm

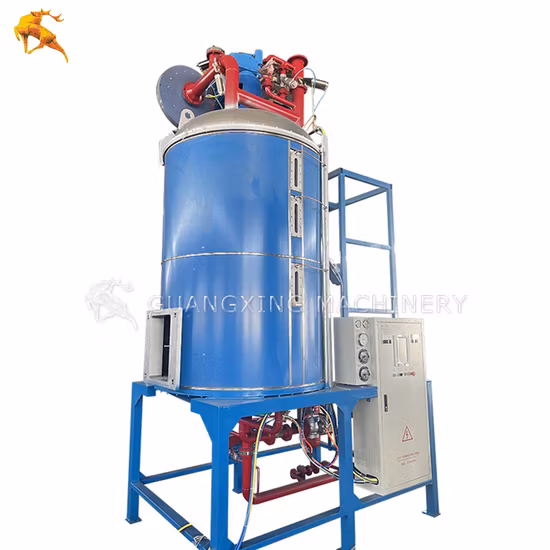

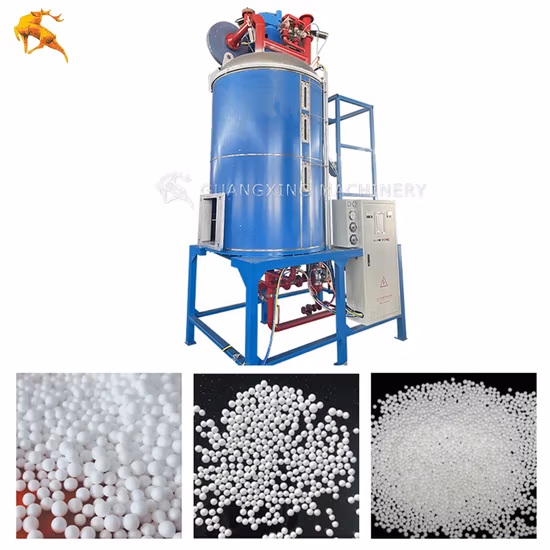

EPS Continuous Pre-Expander Foaming Machinery
