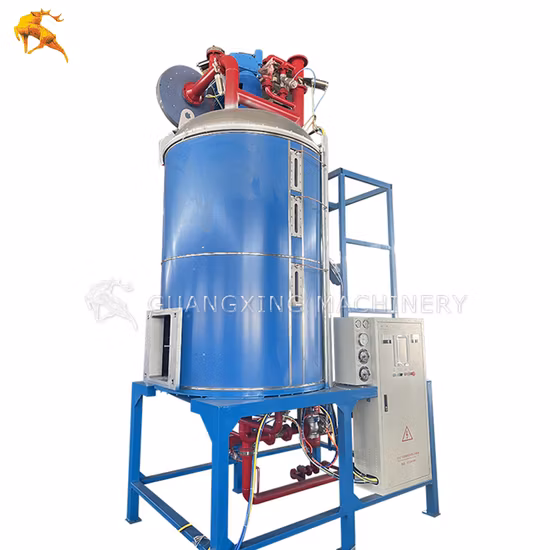

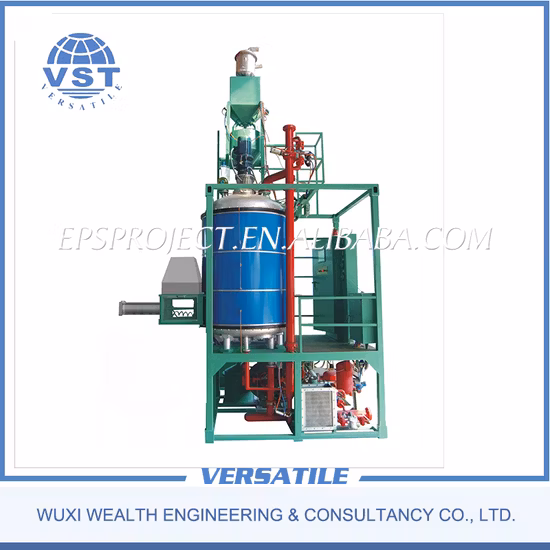

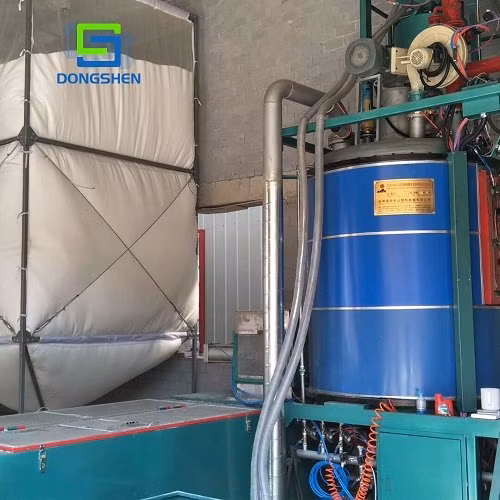

Advanced Technology Level Automatic EPS Pre

Basic Info.

Model NO.	FDS110-160
Computerized	Computerized
Certification	CE, ISO9001:2008
Application	EPS Foam for EPS Plant
Brand	Dongshen
Condition	New
Plastic Type	EPS
Transport Package	Standard Export Package
Specification	FDS1100, FDS1500
Trademark	dongshen
Origin	Zhejiang, China (Mainland)
Production Capacity	20 Unit / Month

Product Description

Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve

TECHNICAL DATA
Item		PSY-70	PSY-90	PSY-120
Expansion Chamber	Diameter Volume Useable volume	Φ 700mm 0.6 m³ 0.4m³	Φ 900mm 1.2 m³ 0.8m³	Φ 1200mm 2.2m³ 1.5m³
Steam	Entry Consumption Pressure	DN20 80-100kg/cycle 0.6-0.8MPa	DN40 100-150kg/cycle 0.6-0.8MPa	DN40 150-200kg/cycle 0.6-0.8MPa
Compressed Air	Entry Pressure	DN15 0.6-0.8MPa	DN20 0.6-0.8MPa	DN20 0.6-0.8MPa
Drainage	Condensate	Φ 20mm	Φ 20mm	Φ 20mm
Throughout	15g/l 20g/l 25g/l 30g/l	100g/l 120g/l 150g/l 200g/l	150g/l 200g/l 250g/l 300g/l	250g/l 300g/l 410g/l 500g/l
Material Conveying Line		Φ 150mm	Φ 150mm	Φ 150mm
Connected Load		8.93Kw	9.73Kw	13.33Kw
Density	First expansion Second expansion	12-30g/l 8-11g/l	12-30g/l 8-11g/l	14-30g/l 8-13g/l
Overall Dimension	(L*W*H)	4700*2660*2600(mm)	4700*2930*3200(mm)	4905*4655*3250(mm)
Weight		1300kg	1500kg	1800kg
Room Height Required		3000mm	3000mm	3000mm
